The most effective method to make a light-after robot in one evening
In the event that you need a simple task to finish in multi day or something like that, or something to acquaint kids with the universe of robots and hardware, make this light-after robot your end of the week venture. The idea is exceptionally straightforward, and could be worked in a limitless number of routes, with parts that you may as of now have close by. Until further notice, however, I'll let you know precisely how I made mine.
Materials required:
2 little DC gear decrease engines—what's utilized here can be found as a "smaller scale gear box speed decrease engine," and is accessible in an assortment of RPM particulars
2 CR2032 coin cell batteries
6 LDRs, or Light-Dependent Resistors
Wheels obtained or rescued from a toy vehicle
½-inch-thick wood, medium-thickness fiberboard, or other comparative material
Perfboard (discretionary)
Instruments required:
Fastening iron
Paste firearm
Drill with bit set and opening saw
Switch, factory, table saw, or other apparatus for adding depressions to wood
Gadgets get together
I'll initially talk about the electronic circuit of the gadget, at that point clarify how it's really gathered, as this should be possible in an assortment of ways. As appeared in the above schematic, the positive side of the stacked batteries (associated in arrangement for 6V) are wired to the other side of every one of the 6 LDRs. Three of these LDRs are organized on the left half of the robot, and the non-battery lead of each is associated with the correct engine. The other three LDRs are masterminded on the correct side, and the non-battery lead is associated with the left engine. The engine leads not associated with LDRs are connected to the negative battery association, finishing a circuit.
The setup demonstrations so that when light is sparkled on the left LDR cluster, protection from the correct engine is brought down, and subsequently control is connected. This makes the engine turn forward on the correct side, turning it towards the light sparkling on the left exhibit. The contrary impact will apply with the other three right LDRS and left engine, and if light is sparkled similarly on the two sides, the robot will go ahead. On the off chance that either engine turns in reverse, swap the battery and LDR leads.
Mechanical Setup
To motivate these parts to resemble a genuine moving robot, I previously put a ½ inch opening in a bit of medium-thickness fiberboard with my processing machine, where the modest engines could dwell. A switch or tablesaw could likewise be utilized for this assignment, in the event that you have it. I at that point utilized a 2¾-inch gap saw to remove a roundabout get together that would shape the robot's body with the opening in the center. At last, I followed the state of a CR2032 batteries in the MDF behind the space, and cut an unpleasant pit for the CR2032 batteries.
From here, I utilized the perf board to spread out the circuit, at that point masterminded the wires so when it's joined to the MDF body with craft glue, the batteries are sandwiched between the + and – wires to supply control. (The wire was stripped back and moved around the protection.) The engines were hung on with a mix of craft glue and the stuck perf board, and wheels were penetrated out to a distance across that could be squeezed straightforwardly onto the gearmotors.
Materials required:
2 little DC gear decrease engines—what's utilized here can be found as a "smaller scale gear box speed decrease engine," and is accessible in an assortment of RPM particulars
2 CR2032 coin cell batteries
6 LDRs, or Light-Dependent Resistors
Wheels obtained or rescued from a toy vehicle
½-inch-thick wood, medium-thickness fiberboard, or other comparative material
Perfboard (discretionary)
Instruments required:
Fastening iron
Paste firearm
Drill with bit set and opening saw
Switch, factory, table saw, or other apparatus for adding depressions to wood
Gadgets get together
I'll initially talk about the electronic circuit of the gadget, at that point clarify how it's really gathered, as this should be possible in an assortment of ways. As appeared in the above schematic, the positive side of the stacked batteries (associated in arrangement for 6V) are wired to the other side of every one of the 6 LDRs. Three of these LDRs are organized on the left half of the robot, and the non-battery lead of each is associated with the correct engine. The other three LDRs are masterminded on the correct side, and the non-battery lead is associated with the left engine. The engine leads not associated with LDRs are connected to the negative battery association, finishing a circuit.
The setup demonstrations so that when light is sparkled on the left LDR cluster, protection from the correct engine is brought down, and subsequently control is connected. This makes the engine turn forward on the correct side, turning it towards the light sparkling on the left exhibit. The contrary impact will apply with the other three right LDRS and left engine, and if light is sparkled similarly on the two sides, the robot will go ahead. On the off chance that either engine turns in reverse, swap the battery and LDR leads.
Mechanical Setup
To motivate these parts to resemble a genuine moving robot, I previously put a ½ inch opening in a bit of medium-thickness fiberboard with my processing machine, where the modest engines could dwell. A switch or tablesaw could likewise be utilized for this assignment, in the event that you have it. I at that point utilized a 2¾-inch gap saw to remove a roundabout get together that would shape the robot's body with the opening in the center. At last, I followed the state of a CR2032 batteries in the MDF behind the space, and cut an unpleasant pit for the CR2032 batteries.
hot sticking a light after robot
Express gratefulness for heated glue
|

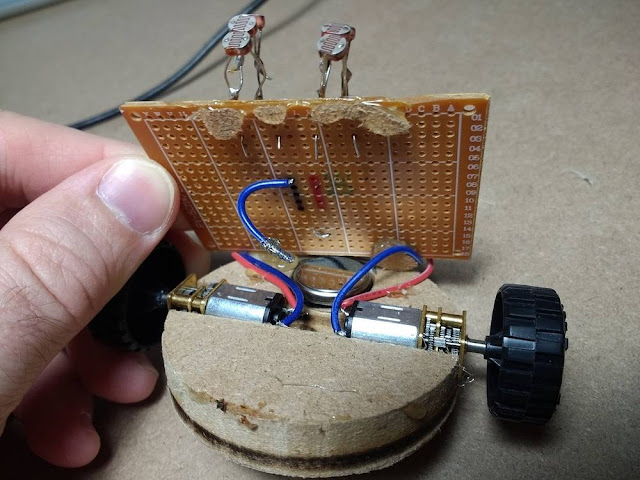

From here, I utilized the perf board to spread out the circuit, at that point masterminded the wires so when it's joined to the MDF body with craft glue, the batteries are sandwiched between the + and – wires to supply control. (The wire was stripped back and moved around the protection.) The engines were hung on with a mix of craft glue and the stuck perf board, and wheels were penetrated out to a distance across that could be squeezed straightforwardly onto the gearmotors.
